Correct car engine tuning without dynamometer is not an easy trick. Although people believe such equipment is expensive. This is true, but not for dynos from Dynomax.
With more than ten years of experience in chip tuning and preparing cars for races, we have designed and started to produce our own chassis dynamometers: reliable and accurate, with wide functionality and great price!
Chassis dynamometers supports testings for performance, diagnostics, break-in, research and development, education and training.
Choose your dyno stand and check it details, photos and make order.
Feature | 1500brd 2WD BRAKED | 1500i 2WD INERTIAL | 4000brd 4WD BRAKED | 4000BRD PRO 4WD BRAKED | 5000BRD 4WD BRAKED | 5000BRD PRO 4WD BRAKED |
---|---|---|---|---|---|---|
Model / type | 2WD, Braked | 2WD, Inertial | 4WD, Braked, Synchronized | 4WD, Braked, Synchronized | 4WD, Braked, Synchronized | 4WD, Braked, Synchronized |
Dimensions (L x W) | 1200 x 3600 mm | 1200 x 3600 mm | 4000 x 3600 mm | 4000 x 3600 mm | 4000 x 3600 mm | 4000 x 3600 mm |
Wheelbase min/max | 2200/900 mm | 2200/900 mm | 3300/2250 mm | 3300/2250 mm | 3300/2250 mm | 3300/2250 mm |
Min/Max Track | 2200/900mm | 2200/900mm | 2200/900mm | 2200/900mm | ||
Roll Diameter | 351 mm | 351 mm | 270 mm | 270 mm | 351 mm | 351 mm |
Weight on Axle | 3000 kg | 3000 kg | up to 3000 kg | up to 3000 kg | up to 3000 kg | up to 3000 kg |
Axles | х 2 | х 2 | х 5 | х 5 | х 5 | х 5 |
Electromagnetic Brake | 2000N x 1 | 2000N x 1 | 2000N x 2 | 2000N x 1 | 2000N x 2 | |
Vmax | 300 kph | 300 kph | 300 kph | 300 kph | 300 kph | 300 kph |
Modes of Operation | inertial | inertial | inertial | inertial | inertial | inertial |
loaded | loaded | loaded | loaded | loaded | ||
road conditions | road conditions | road conditions | road conditions | road conditions | ||
constant speed | constant speed | constant speed | constant speed | constant speed | ||
Pmax Inertial Mod | 650 hp | 650 hp | 1250 hp | 1250 hp | 1500 hp | 1500 hp |
Pmax Constant Speed and Road Conditions | 1250 hp | 1350 hp | 1700 hp | 1250 hp | 1800 hp | |
Pmax Dynamic Mode from the Wheels | 1100 hp | 1100 hp | 2000 hp | 1700 hp | 2000 hp | |
Accuracy Inertial Mode | 0,10% | 0,10% | 0,10% | 0,10% | 0,10% | 0,10% |
Accuracy Loaded Mode | 1% | 1% | 1% | 1% | 2% | 2% |
Voltage min AC | 220V / 16A | 220V / 16A | 220V / 40A | 220V / 40A | 220V / 40A | 220V / 40A |
Air Pressure | min 5 bar | min 6 bar | min 5 bar | min 5 bar | min 5 bar | min 5 bar |

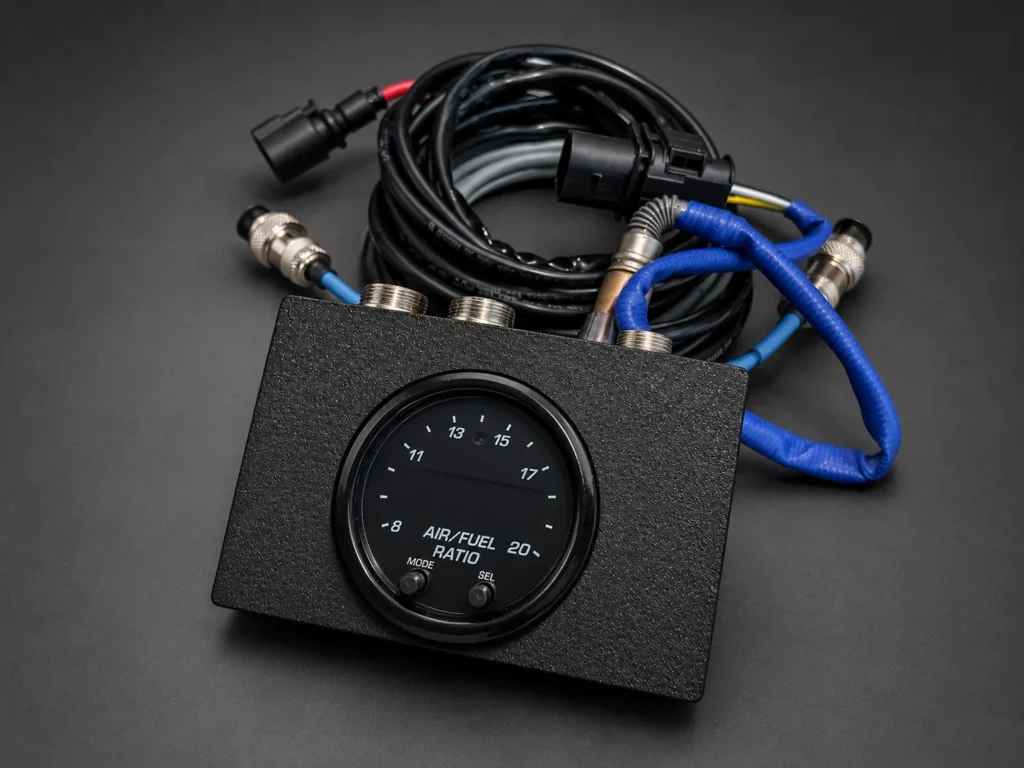

Extras | Wide Band Lambda | Wide Band Lambda | Wide Band Lambda | Wide Band Lambda | Wide Band Lambda | Wide Band Lambda |

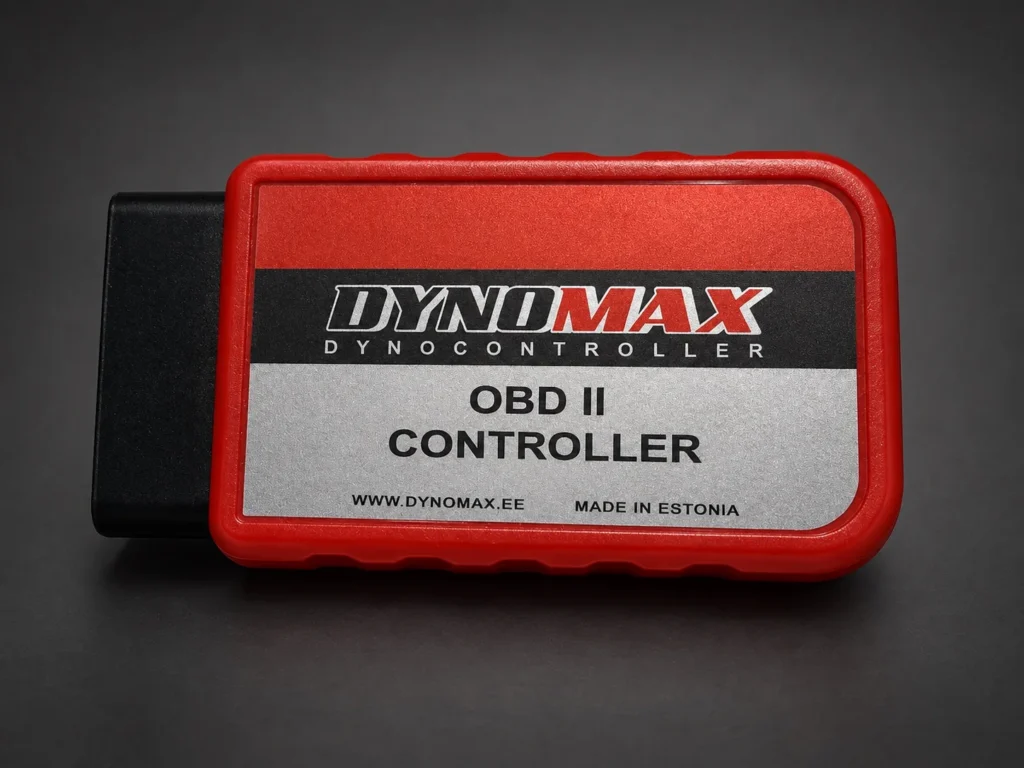

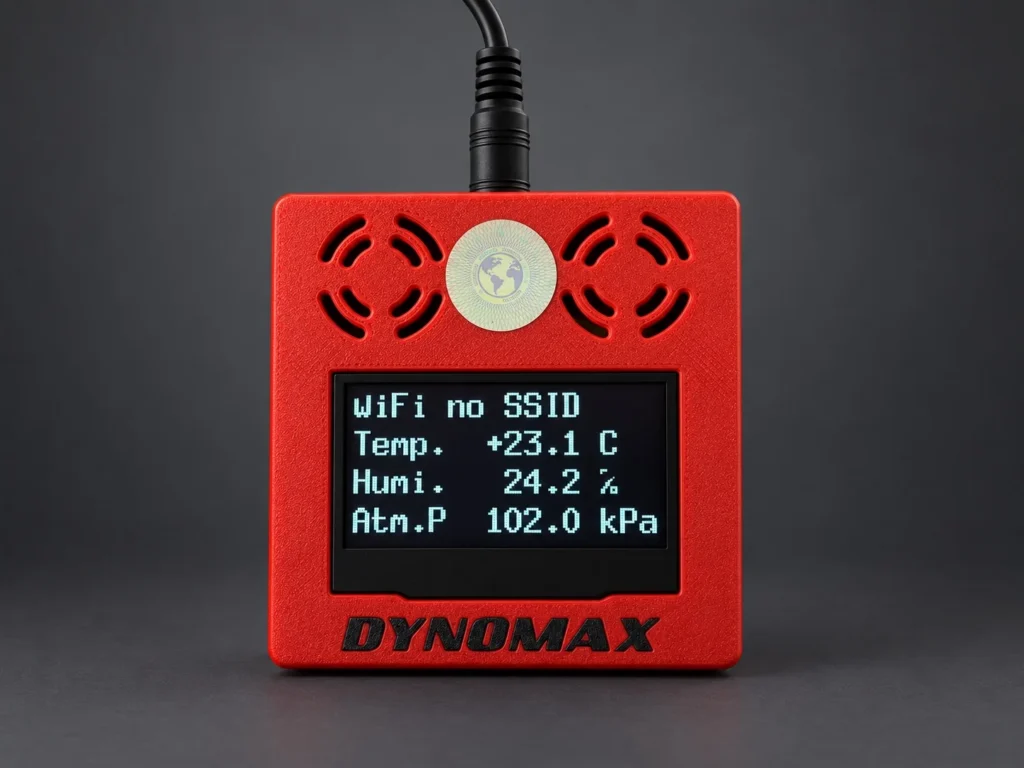

OBD, Wifi Weather Station | OBD, Wifi Weather Station | OBD, Wifi Weather Station | OBD, Wifi Weather Station | OBD, Wifi Weather Station | OBD, Wifi Weather Station | |

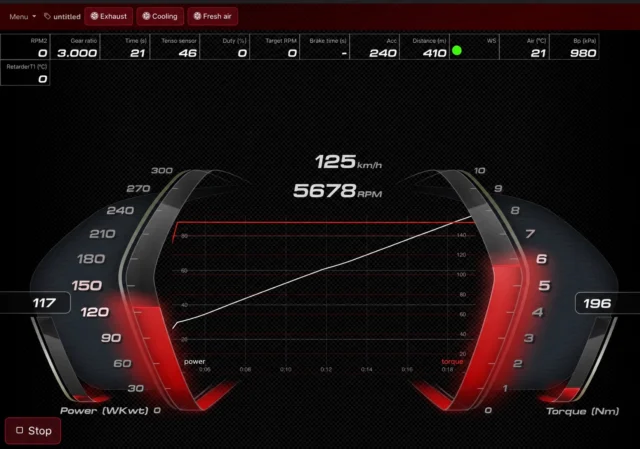

DynomiZer Wireless Software | DynomiZer Wireless Software | DynomiZer Wireless Software | DynomiZer Wireless Software | DynomiZer Wireless Software | DynomiZer Wireless Software | |

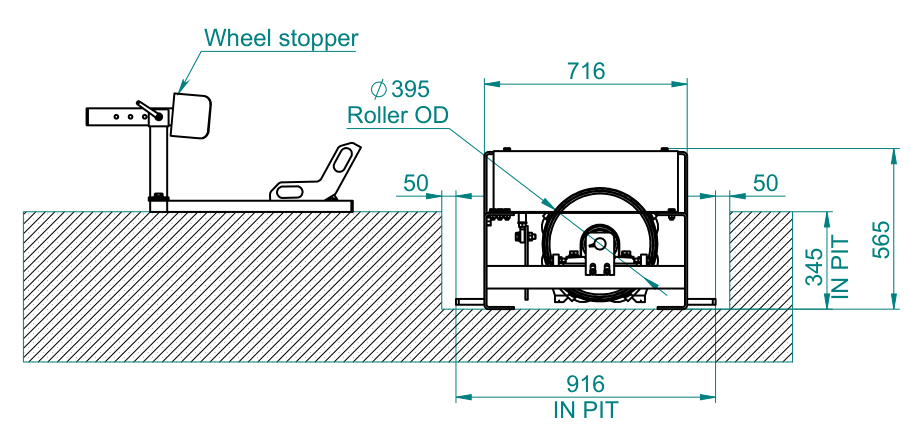

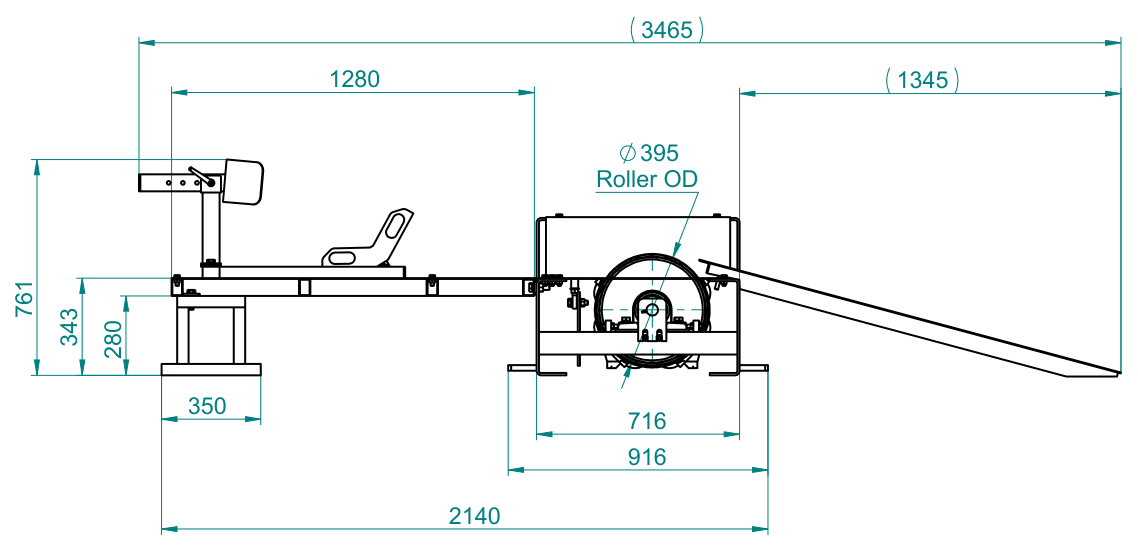

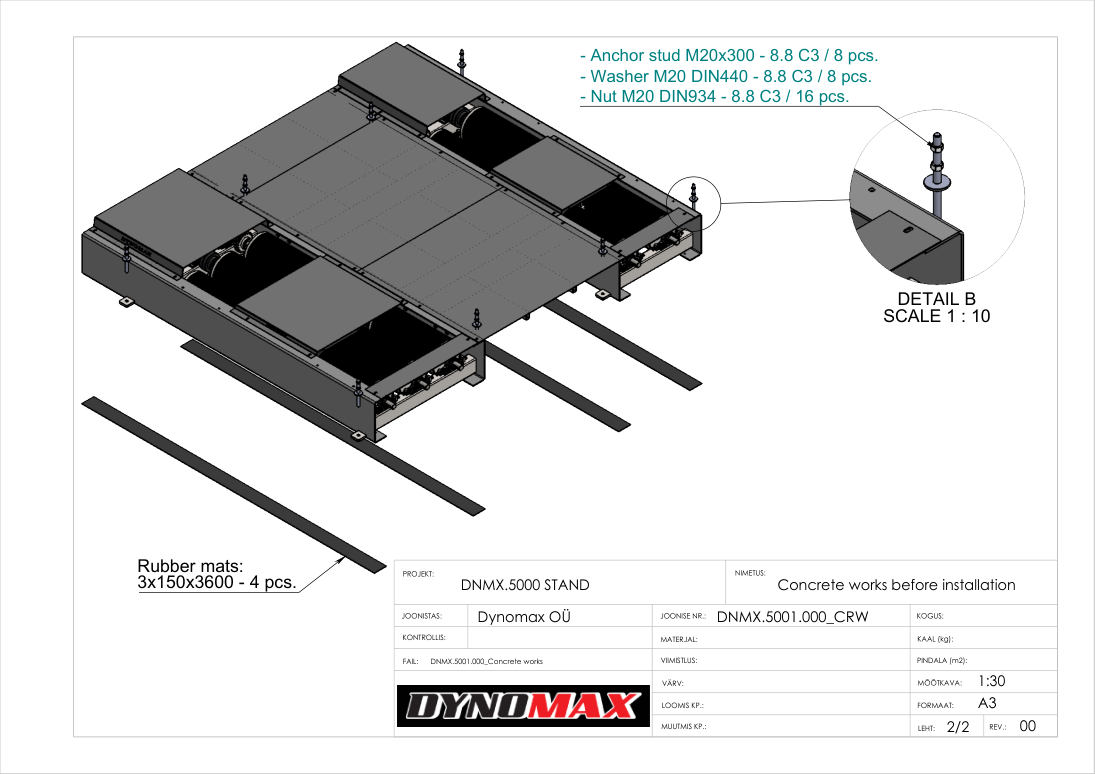

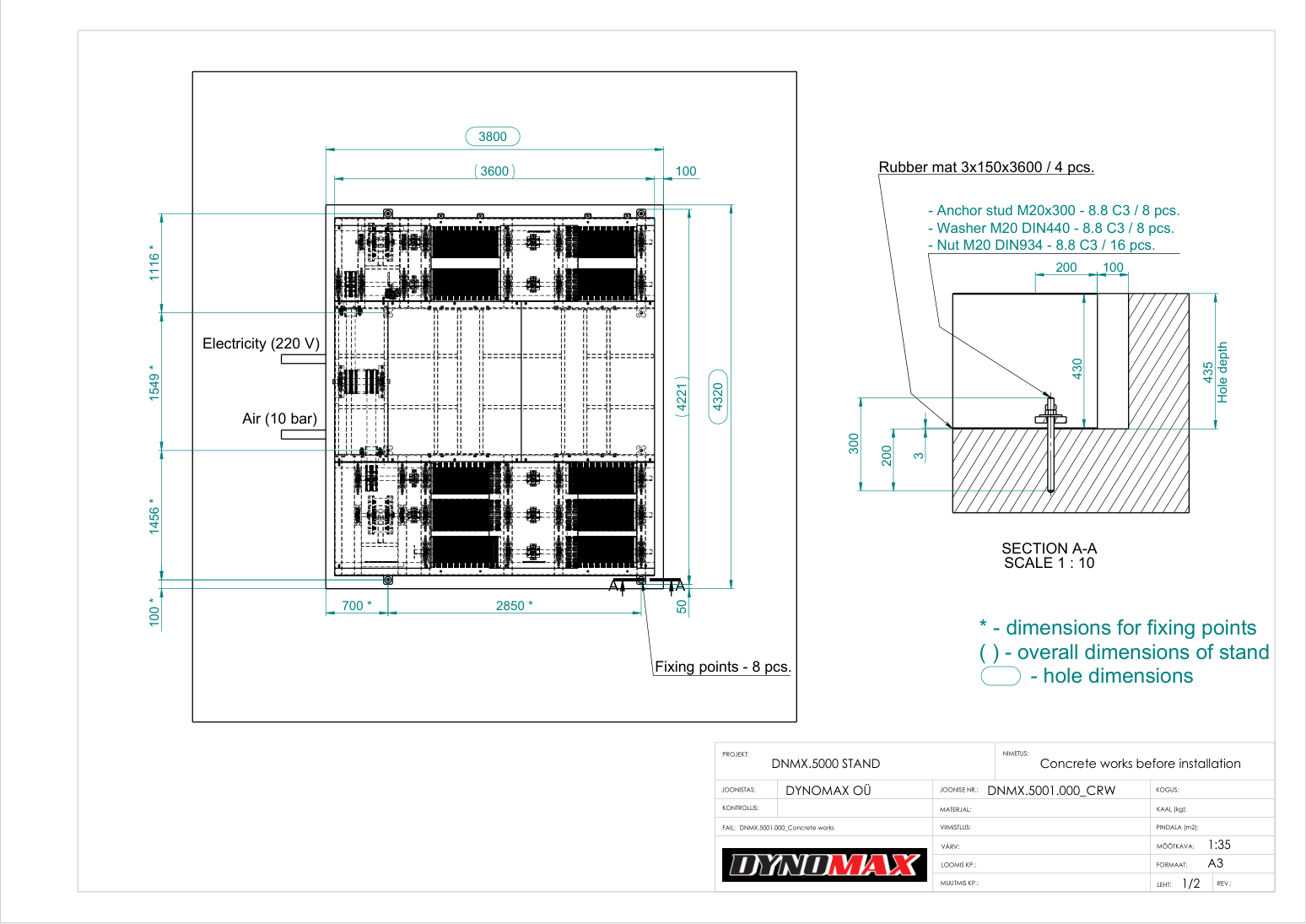

Basic composition | in-pit / surface-mounted | in-pit / surface-mounted | in-pit / surface-mounted | in-pit / surface-mounted | in-pit / surface-mounted | in-pit / surface-mounted |
Dynomax Industrial was founded in 2005.
For more than a decade we have been engaged in chip-tuning, engine constructions and preparing cars for races. In our everyday work we have used dynos of different models. Now, this experience allows us to produce our own chassis dynamometers -reliable, accurate, with wide functionality and specially designed for heavy duties.
Our office and manufacturing facilities are located in Tallinn, Estonia. This allows us to deliver our products and provide complete customer support in very short time. We help our customers to install and to start using the equipment, providing all necessary trainings through Internet or directly in place of your work. Our dynos are already used by car performers in Estonia, Latvia, Lithuania and Russia

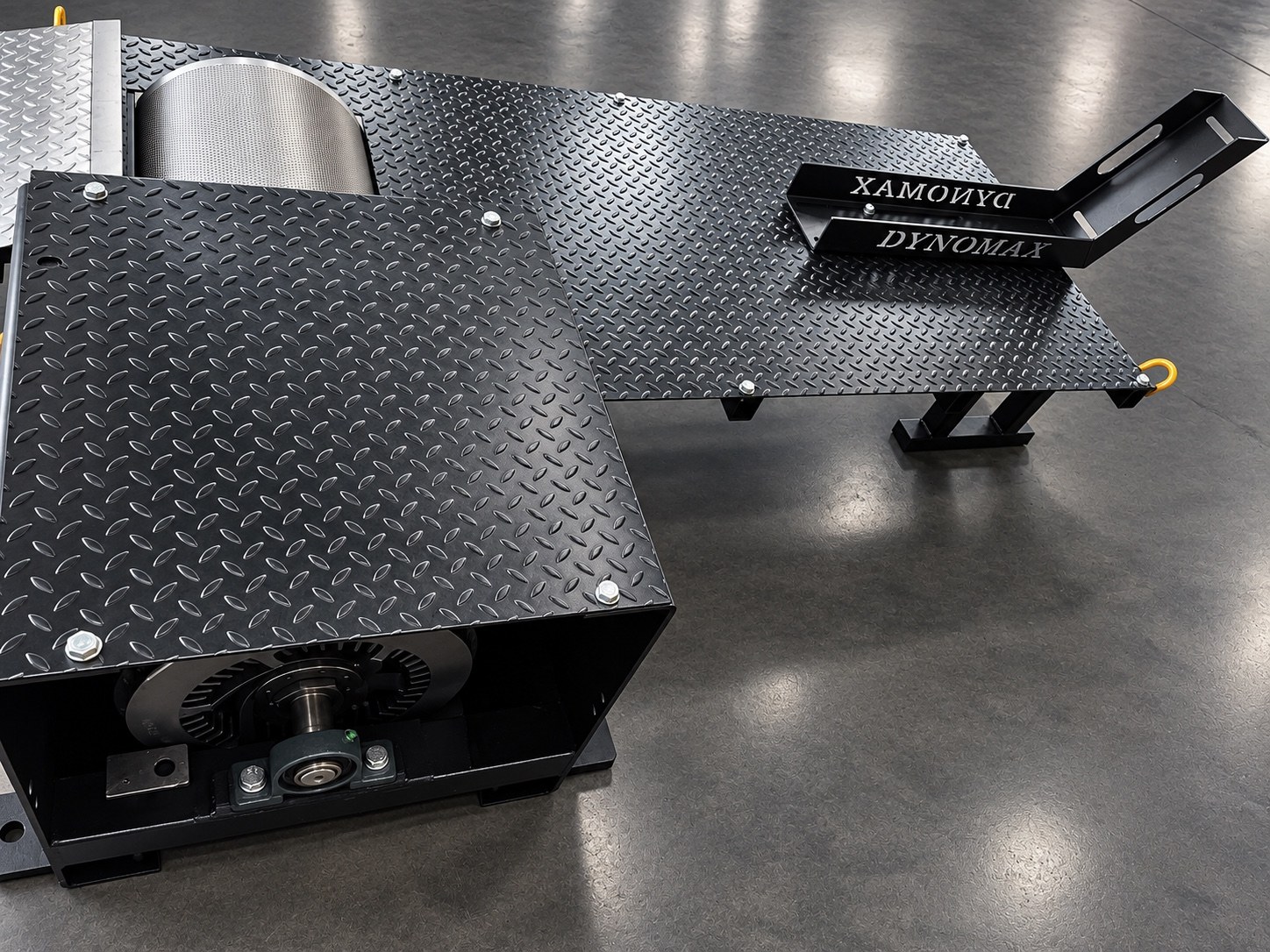

Rolls special processing and balancing provides a low vibration, superior traction and creates a large inertial mass which is necessary for accurate measurements. Axles are designed for loads up to 3000 kg

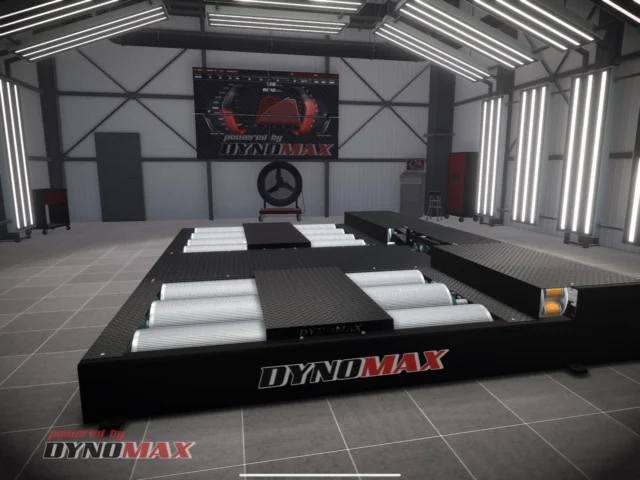

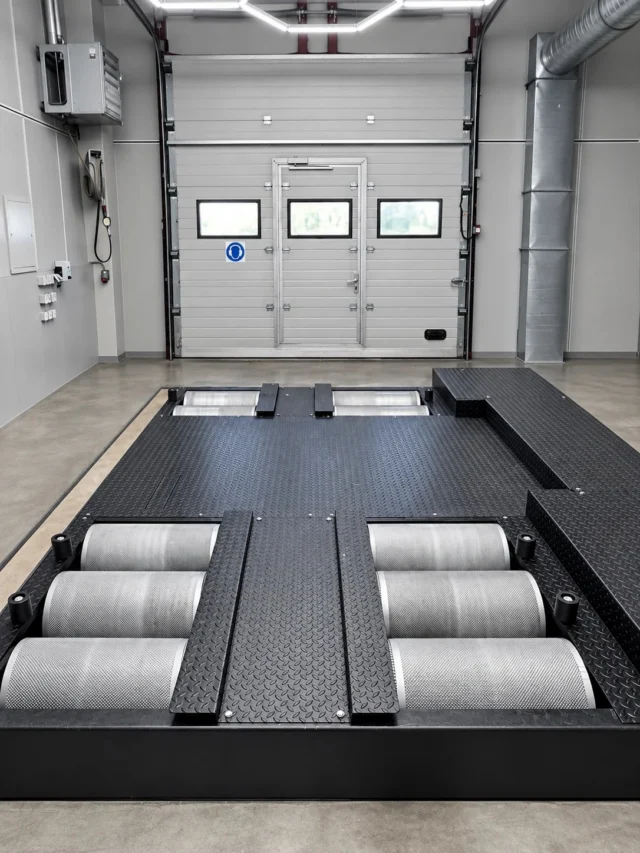

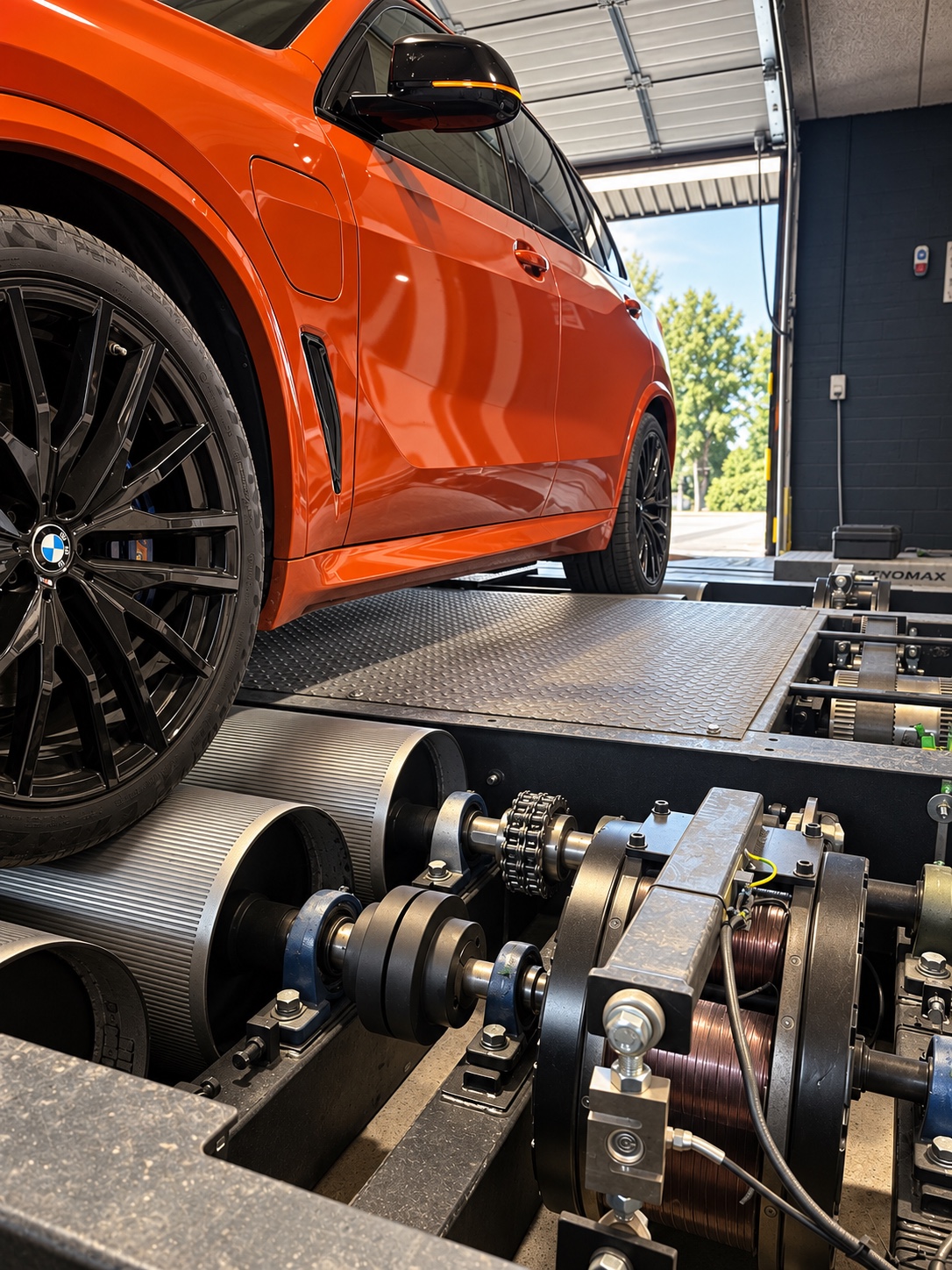

AWD models are equipped with multi-roll system for quick and easy vehicle installation and greater inertial mass. All axes are synchronized for measuring cars with all gear types.
We can construct dyno for your individual needs. According to you needs we will create ideal dynamometer for your business. Rolls diameter, axles and electromagnetic brakes number – there will be no limitation! .

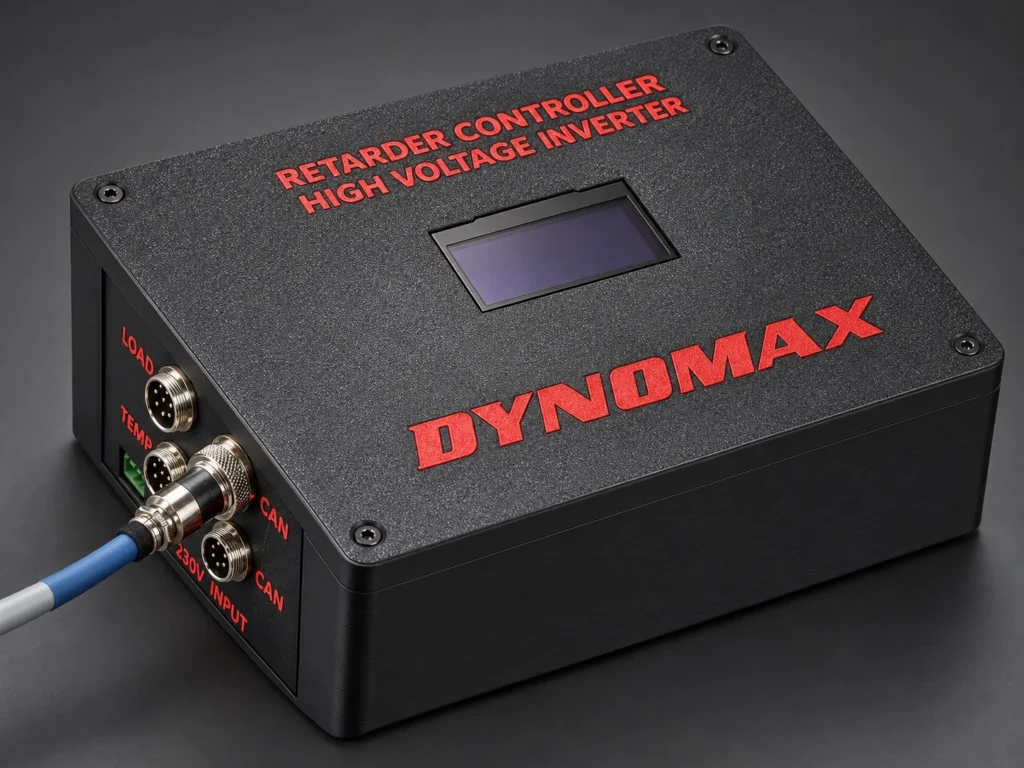

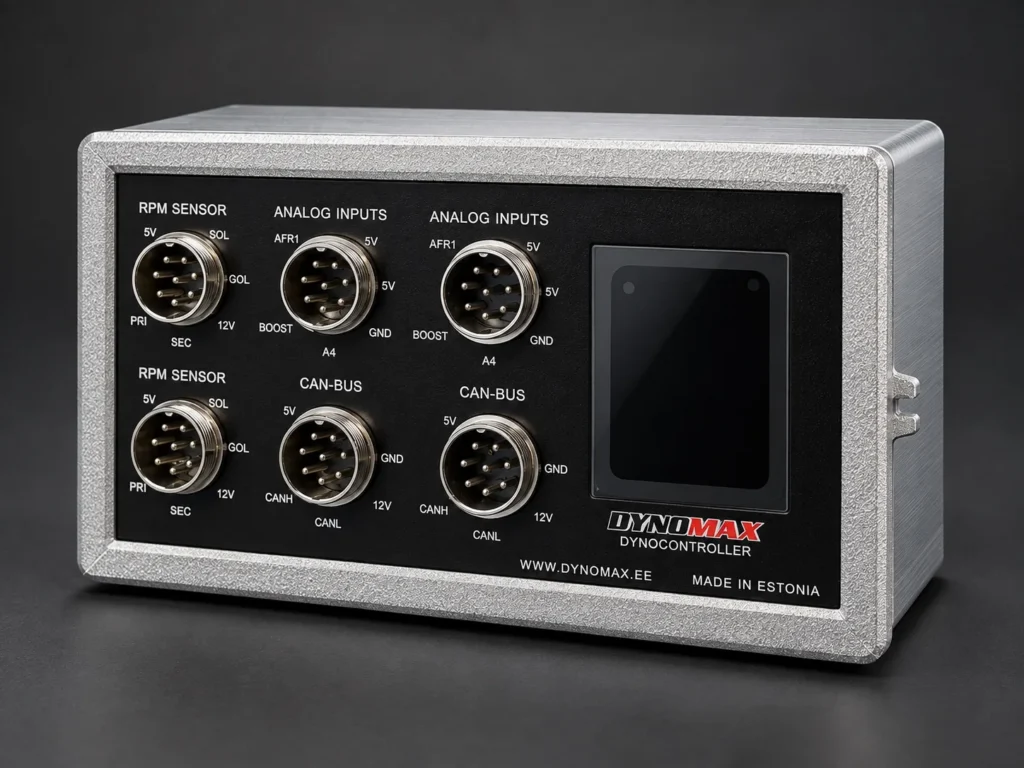

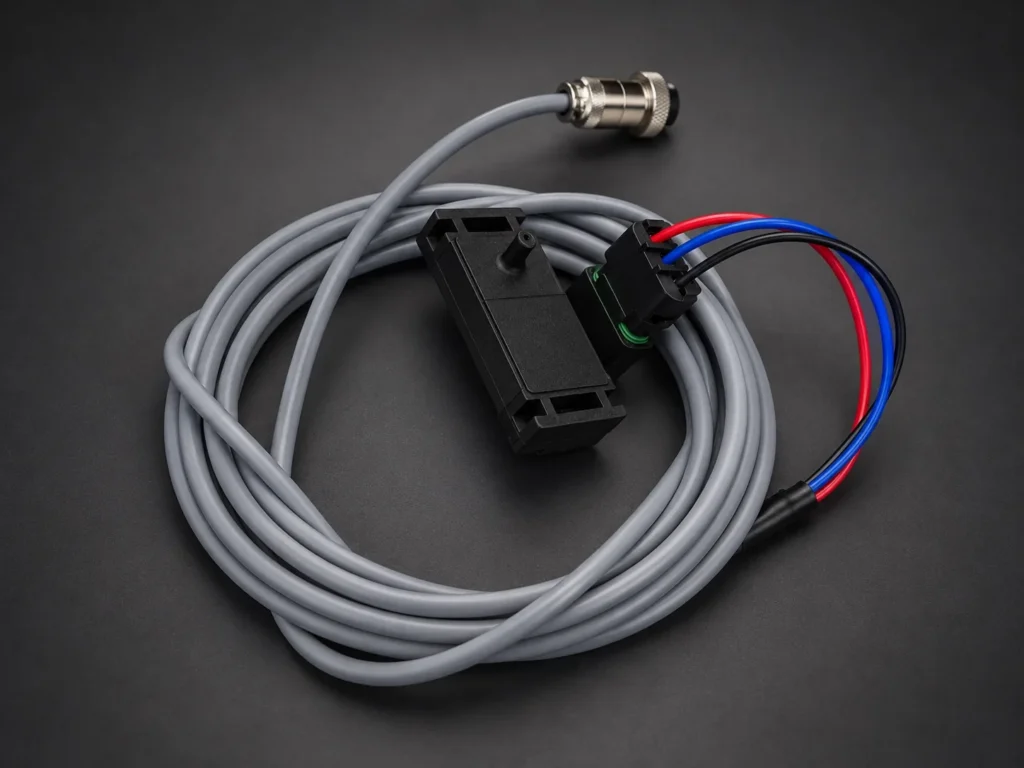

Electronic components and software have been designed taking into account the real performers needs. Multi-layer controller board is packed in durable case. You can test vehicles with output up to 2000 hp. and get to know: torque, power (of the engine and wheels) ), boost pressure, composition of the exhaust gases the AFR, transmission loss, exhaust gas temperature.
We create a custom dyno for individual orders
Practical in use and affordable in price because created by professional engine tuning specialists

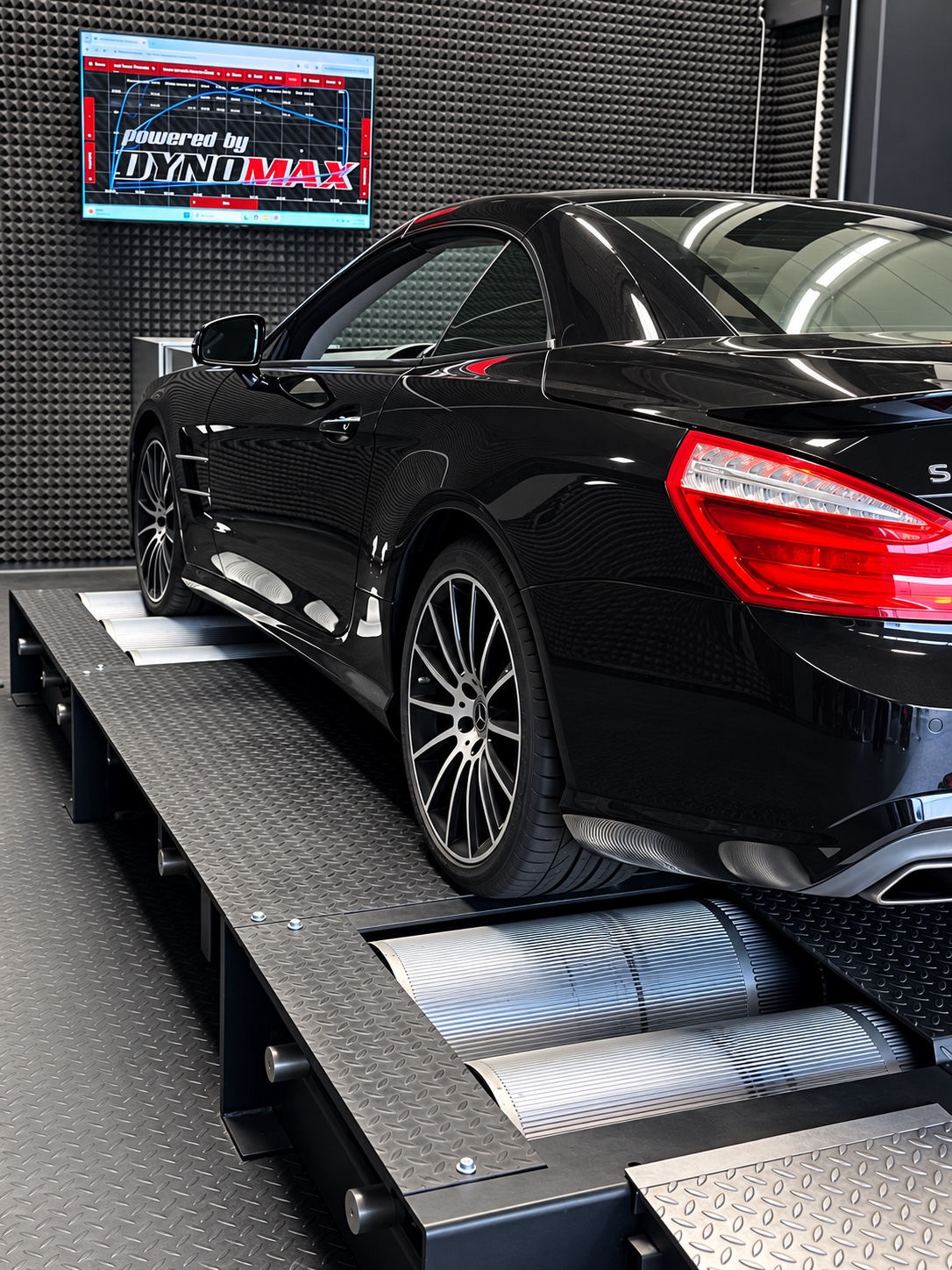

Multi-rolls system for quick and easy car installation and greater inertial mass
Synchronized axles allows safely measuring of cars with all drive types and driver support systems
High accuracy measurements and professional data processing
Mechanical and electronics parts are designed for long-term heavy loads
Quick customer support and training
Please, call us, write us a letter or contact through the contact form below – we’ll answer you asap and will find exact solution for your business with the best price you can find on the market!
