Name: DYNOMAX 4000BRD PRO 4WD BRAKED
Brand: Chassis car dyno

DYNOMAX 4000BRD PRO 4WD BRAKED

measuring up to 2000+ hp

Chassis car dyno

Description

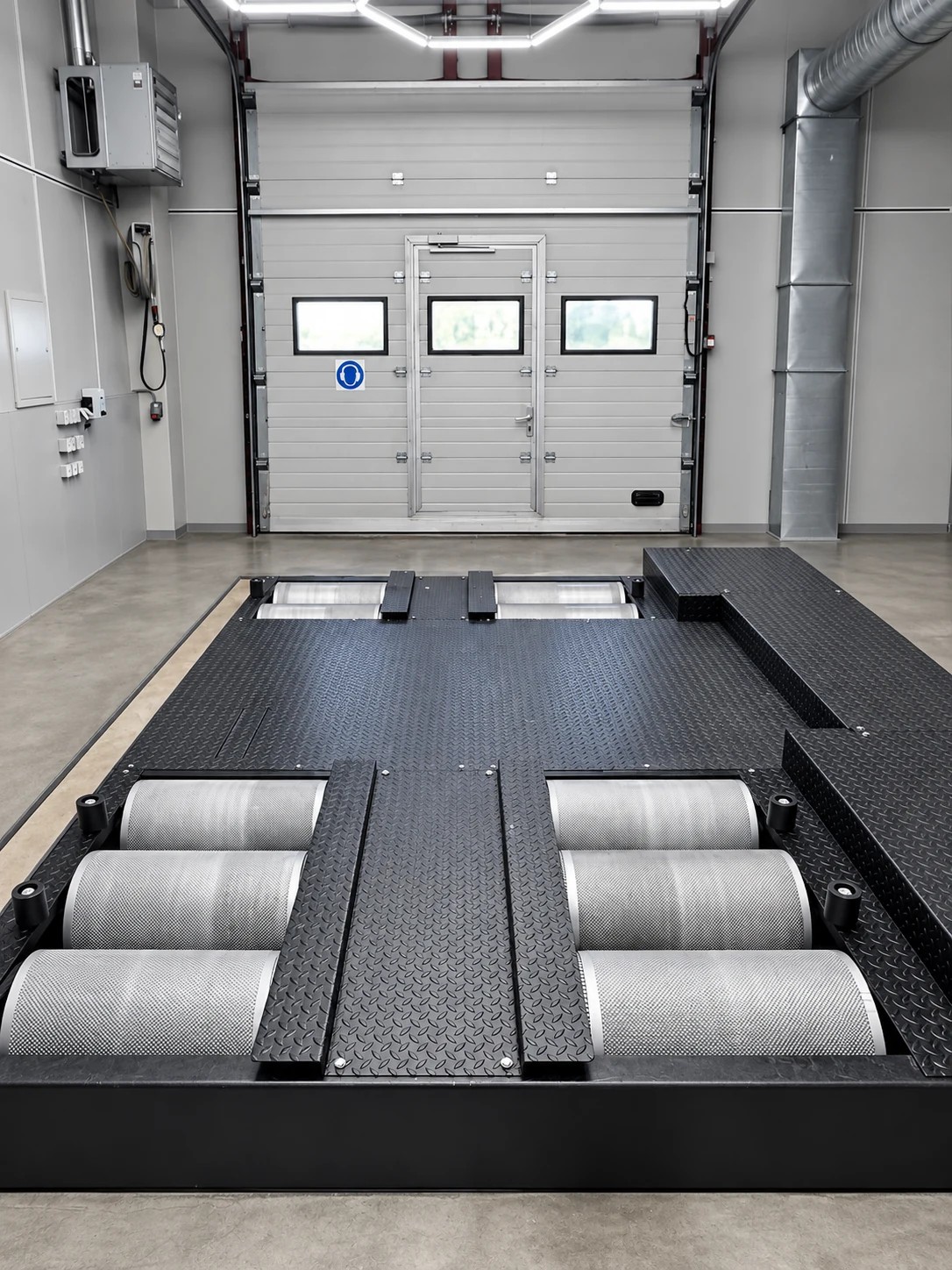

Description Correct car engine tuning without dynamometer is not an easy trick. Although people believe such equipment is expensive. This is true, but not for dynos from Dynomax. Rolls special processing and balancing provides a low vibration, superior traction and creates a large inertial mass which is necessary for accurate measurements. Axles are designed for loads up to 3000 kg

Enquiry

Support

Electronic components and software have been designed taking into account the real performers needs. Multi-layer controller board is packed in durable case. You can test vehicles with output up to 2000 hp. and get to know: torque, power (of the engine and wheels) ), boost pressure, composition of the exhaust gases the AFR, transmission loss, exhaust gas temperature.

Product details

Feature

Value

Model / type

4WD, Braked, Synchronized

Dimensions (L x W)

4000 x 3600 mm

Wheelbase min/max

3300/2250 mm

Min/Max Track

2200/900 mm

Roll Diameter

270 mm

Weight per Axl

up to 3000 kg

Axles

х 5

Electromagnetic Brake

2000N x 2

Max Test Speed

300 kph

Modes of Operation

inertial
loaded
road conditions
constant speed

Pmax Inertial Mod

1000 hp

Pmax Constant Speed and Road Conditions

1200 hp

Pmax Dynamic Mode from the Weels

2000 hp

Accuracy Inertial Mode

0,1%

Accuracy Loaded Mode

Voltage min AC

220V / 32A

Air Pressure

min 10 bar

Extras

Wide Band Lambda
OBD, Wifi Weather Station
DynomiZer Wireless Software

Basic composition

in-pit / surface-mounted
